14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility

Name: 14x17inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility
Brand: KEIND
Price: 1 USD

Wholesale 14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility from china suppliers

Brand Name : KEIND

Model Number : KND-FP-14X17

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T,Western Union,MoneyGram,D/P,D/A

Delivery Time : 5-8working days

Detector Technology : Amorphous Silicon

Scintillator : CsI

Active Area (inch) : 14x17

Pixel Matrix : 2304 × 2800

Pixel Pitch (µm) : 150

Spatial Resolution (lp/mm) : 3.3

AD Conversion (bit) : 16

Battery Autonomy (h) : 8

Interface : DICOM compatible, USB, Ethernet

WIFI : 2.4G and 5G, IEEE802.11 a/b/g/n/ac

Trigger Mode : AED (Optional) / Software

Internal Image Storage : 200 full size images

Full Image Time (s) : 5

Dimensions (mm³) : 384 × 460 × 15

Weight (kg) : 3.3

Static Loading : 150kg Uniformly

Ingress Protection : IPX1

Operating Temperature (°C) : 5 ~ 35

Storage & Transport Temperature with Package (°C) : -20 ~ 55

Operating Humidity (% RH) : 10 ~ 90 (Non-Condensing)

Storage & Transport Humidity with Package (% RH) : 5 ~ 95 (Non-Condensing)

Contact Now

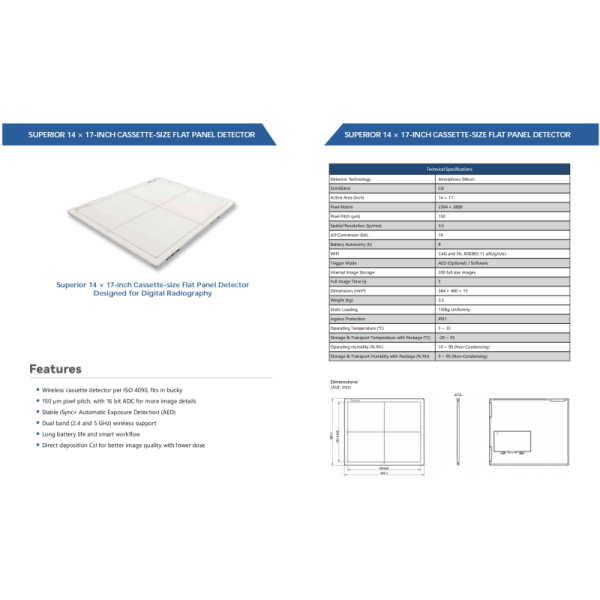

FLAT PANEL DETECTOR SUPERIOR 14 * 17-INCH CASSETTE-SIZE

14x17-inch Active Area Flat Panel Detector with Amorphous Silicon Technology and DICOM Compatibility

This high-performance flat panel detector features a standard 14*17-inch cassette size, providing superior image quality and reliability for medical imaging applications. Designed for compatibility with existing systems while delivering advanced digital performance.
